TMEZON WiFi Video Doorphone 10zoll Touch Screen with 1080P Wired Doorbell 5in1 APP/Password/ Fingerprint/Card Swipe/Monitor tuya

330,01 913,54

SKU: 1005002630726667 Category:

TUYA TMEZON Video Door Phone Intercom System, 10 Inch WiFi Monitor with 1080P Doorbell,Support Fingerprint,RFID Card,Password Touch Screen

Please note that there are many combinations of this product. The 90 euro one is a single outdoor doorbell. You must purchase a separate screen before you can use it together. Please contact us before purchasing!!

The Smart home era is coming, it is time to replace your old intercom!

We recommend the latest generation Wifi IP Video Intercom System for you.

TMEZON WiFi video door intercom doorbell intercom system

10 inch 1080P touchscreen monitor and wired outside bell

5 in 1 unlock: fingerprint / password / IC card / APP / monitor

Better APP: TuyaSmart

4-wires system for 1 family

10-inch LCD Touch monitor and mini doorbell

10-inch TFT touch screen monitor with slim design, touch key operation, hands-free, support Wifi to connect to the Internet. Outdoor doorbell with waterproof cover, built-in infrared sensor and 1080P camera, 110º wide angle, night vision, waterproof, dustproof and vandal resistant. You can connect all 12V electronic locks.

Answer the door in your hands

Get a video call on your smartphone when visitors press the doorbell, you can see, hear and talk to anyone in front of your door from anywhere and you won’t miss any visitors

5 in 1 Unlock

This device has various unlocking methods. You can unlock by password, monitor, IC card, APP and screen. It is very convenient and flexible. 5 passes are included in the scope of supply. If you want more, add a 13.56MHz badge.

Automatic recording

When visitors press the doorbell or motion detection is triggered, the doorbell camera will automatically record videos or snapshots and save them to the additional Micro SD card to protect your home every day. (SD card needs to be purchased separately)

About wireless connection

Please note that the wireless video intercom system does not mean you do not need any cables, the indoor monitor supports WIFI network (only connect with 2.4GHZ router band) or RJ45 network cable, but the outdoor doorbell It is wired, power, the video works stable.

Wiring diagram

The monitor to monitor,the monitor to doorbell need wired with 4 wires.

We provide 1m 4 core cable for each doorbell for base installation, 1.2m external power supply for each monitor. You can extend the distance with 4-core wire,Shielded cable,CAT5/CAT6 and RG59 cable.

The main monitor can connect to your home wifi network.ll mount)

Multi-Device Connection

The 10’’ monitor can connect more 3x 7’’ slave monitors and 2 doorbells. All the monitors can see,hear,speak to the outdoor camera and unlock the door.

Support connect additional 2x CCTV camera,2x PIR alarms,2x electronic locks,giving you more comprehensive protection for your home.

Motion detection

When a motion detector is triggered, the device starts a recording or takes a photo even if no one rings the doorbell.

Fingerprint Unlocking

The outdoor hood is equipped with fingerprint capability and supports up to 200 fingerprints. Unlocking and access more convenient.

110 ° wide angle

The angle of the hood on the outside is 110 °, so you get a wide picture and never miss a visitor.

12 ringtones Optional

The indoor monitor has 12 built-in ring tones. You can set different volume levels for different times of the day and adjust the ring time as needed.

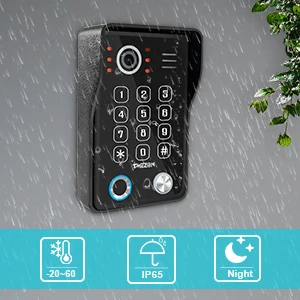

Rainproof and night vision

IP65 waterproof design, stable work in rainy, cloudy, cold and snowy days.

Built with 1080P pinhole camera, anti-rust, rain-resistant, dust-proof and anti-vandal aluminum alloy panel.

IR LED lighting for better night vision.

Dual-way and call forwarding

When someone rings the doorbell, all monitors will ring. You can answer and unlock the door with any monitor. All monitors support call forwarding or internal speaking (audio only) between indoor monitors.

Power supply

There is one external power supply (12V2A) in the box for the indoor monitor for base installation.If you don’t want to use the external power you can extend the electric wire to your DIN rail power supply or home power center.

Package Included:

1x 10 IP inch color Indoor Monitor,
1x Monitor mounting plate
1x 1080p Outdoor Doorbell Camera,mounting plate
2x Power adapter
5x 200mm 4 pin connector
1x 200mm 2 pin connector
2x Screw Bag
1x User Manual
